A Screw Conveyor, also known as an auger conveyor, is one of the most efficient mechanical systems for transporting bulk materials such as powders, granules, and small solid particles. It uses a rotating helical screw inside a tube or trough to move materials from one point to another. Because of its simple structure, reliable performance, and flexibility in installation, it has become a crucial piece of equipment in industries like food processing, chemical production, plastics, construction, and agriculture.
Below is a detailed overview of the screw conveyor’s structure, advantages, applications, maintenance, and customization options.

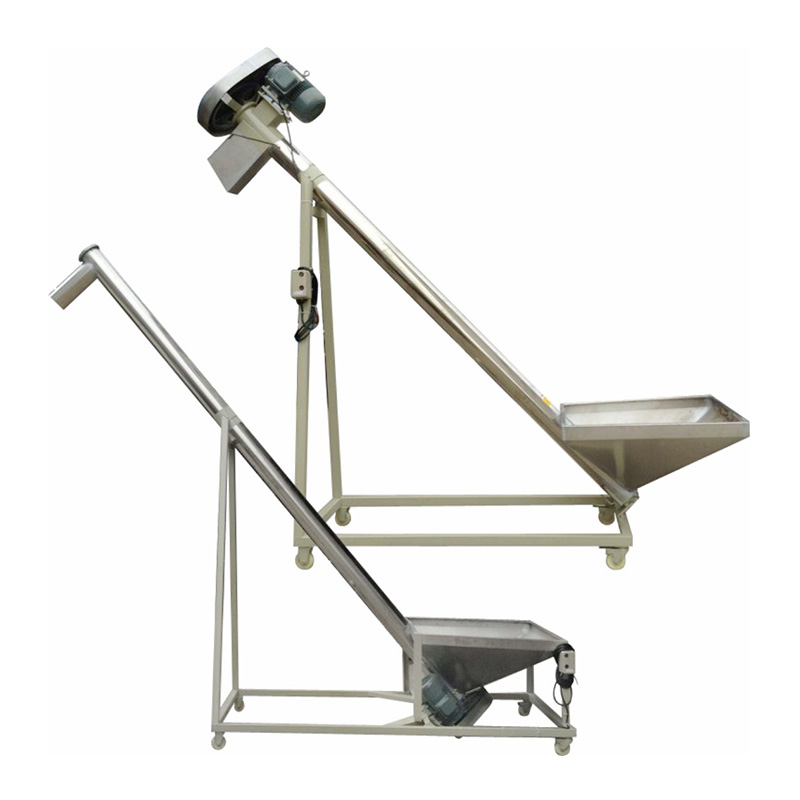

A screw conveyor consists of a rotating screw blade (helix) mounted inside a tube or U-shaped trough, driven by an electric motor. When the motor rotates, the screw blade turns, and material inside the tube moves forward due to friction between the screw and the material.
Screw Shaft and Blades: The core part responsible for pushing materials along the tube.
Casing (Tube): Usually made of stainless steel or carbon steel, it encloses the screw and protects materials from contamination.
Motor and Gearbox: Provide stable torque and adjust conveying speed.
Inlet Hopper: Where bulk material enters the conveyor system.
Discharge Outlet: The exit point for the conveyed material.
Support Frame with Wheels: Makes movement and installation flexible for different production setups.
When the screw rotates, materials are trapped between the blade surface and the casing wall. The continuous helical motion generates a uniform, forward-moving flow. The inclination angle of the tube and the rotation speed determine how fast the materials move. For example, a 4 KW motor with a Φ219 mm tube can handle up to 2000 KG per hour, ensuring high throughput.
A screw conveyor offers multiple advantages that make it suitable for modern automated production lines.
The enclosed design minimizes loss and contamination while maintaining a steady conveying rate. Its operation is continuous and uniform, ideal for feeding mixers, packaging machines, or extruders.
Unlike belt or pneumatic conveyors, screw conveyors require minimal space. They can be installed horizontally, inclined, or even vertically, adapting to various plant layouts.
They handle powders, granules, and semi-solid materials — from flour, sugar, and coffee powder to plastic resin, cement, and fertilizer. With the right configuration, the same system can serve different industries.
Constructed from 201 stainless steel, the conveyor resists corrosion and abrasion. Its modular structure allows easy cleaning and blade replacement, reducing downtime.
By adjusting the motor speed, operators can control the material flow precisely. This is especially useful for batching, weighing, or packaging systems that require consistent feeding rates.
Screw conveyors are widely used in bulk material handling systems across multiple sectors. Their adaptability and simple design make them ideal for continuous operation in harsh environments.
Used for conveying flour, sugar, coffee, milk powder, spices, or grain-based products. The stainless steel build ensures hygiene and compliance with food safety standards.
Transfers granules, resins, pigments, or additives to mixers and extruders. The sealed structure prevents dust leakage and contamination during processing.
Efficiently moves grains, feed pellets, seeds, and fertilizers. The adjustable discharge height makes it suitable for feeding silos or packaging units.
Handles sand, cement powder, fly ash, and other heavy materials in batching plants or brick-making lines. The screw conveyor’s strong torque and wear-resistant construction are ideal for such environments.
Used for conveying sludge, ash, or recycled materials in environmental treatment systems. It can operate in wet or dry conditions, supporting sustainability processes.
Each application benefits from the system’s closed design, which prevents spillage, controls dust, and maintains clean production surroundings.
To maintain stable performance and extend service life, a screw conveyor requires regular inspection and simple preventive maintenance.
Ensure the equipment is placed on a firm, level surface.
Check alignment between the screw shaft and the motor.
Tighten all bolts and connections before starting the machine.
Gradually start the motor to check for smooth rotation and vibration.
Daily: Observe vibration, noise, and material flow.
Weekly: Lubricate bearings and check the gearbox oil level.
Monthly: Inspect screw blades for wear, deformation, or buildup.
Quarterly: Clean the casing and recheck the sealing performance.
After long operation cycles, clean the screw and hopper to prevent residue buildup. For food or chemical applications, sanitation and disinfection should be performed after each shift.
Never perform maintenance while the conveyor is running, and always cut off the power before inspection.
| Issue | Possible Cause | Solution |
|---|---|---|
| Uneven conveying | Worn screw blades | Replace the blades |
| Excessive noise | Loose bearings | Re-tighten or replace bearings |
| Poor discharge | Blocked inlet or outlet | Clean and remove obstructions |
| Overheating motor | Overload or misalignment | Adjust or reduce material load |
By following these maintenance guidelines, the conveyor can maintain stable operation for 5–10 years with minimal downtime.
Every industry has different material properties and operational requirements. Screw conveyors can be custom-built to match capacity, material, and process layout.
Material: Stainless steel (201), Stainless steel (304/316), carbon steel, or alloy steel for high wear environments.
Diameter and Length: Adjustable based on desired capacity (Φ141–Φ219 mm and beyond).
Incline Angle: Designed according to layout — horizontal, 30°, 45°, or vertical installation.
Motor Power: Ranges from 2.2 KW to 4 KW and beyond, with 4-pole efficiency.
Feeding Hopper: Optional volume for manual or automatic feeding.
Discharge Height: Adjustable outlet to fit mixers, silos, or packaging machines.
Blade Type: Continuous, sectional, or ribbon-type blades for different materials.
Speed Control: Variable frequency drive (VFD) for accurate flow regulation.
For industrial clients requiring integration into automated production systems, OEM and ODM designs are available — including electrical control customization, sensor integration, and export-grade packaging.
All conveyors are packaged in paper or wooden boxes to prevent collision during shipment, ensuring safe delivery to clients worldwide.
Choosing a screw conveyor brings significant operational, economic, and environmental advantages to modern manufacturing.
Continuous and dust-free material transfer
Easy integration with weighing, mixing, and packaging systems
Smooth, vibration-free operation with minimal noise
Low maintenance and energy consumption compared to pneumatic conveyors
Long lifespan with minimal wear parts
High throughput (up to 2000 KG/HR) with stable material feeding
The enclosed structure prevents material leakage and air pollution. With low noise levels and overload protection, screw conveyors ensure safe, eco-friendly operation.
Whether in food production, chemical blending, or cement handling, screw conveyors offer a reliable return on investment. Their modular design allows easy upgrades, capacity expansion, and integration into fully automated systems.
A screw conveyor is not just a simple mechanical feeder — it’s a versatile, efficient, and safe conveying solution that meets the needs of modern industries. With customizable configurations, high durability, and consistent performance, it ensures stable production and cost efficiency.
For industrial buyers seeking OEM/ODM screw conveyors, investing in a well-engineered and precisely manufactured system ensures higher productivity, lower maintenance costs, and long-term reliability — the hallmarks of a successful production line.
