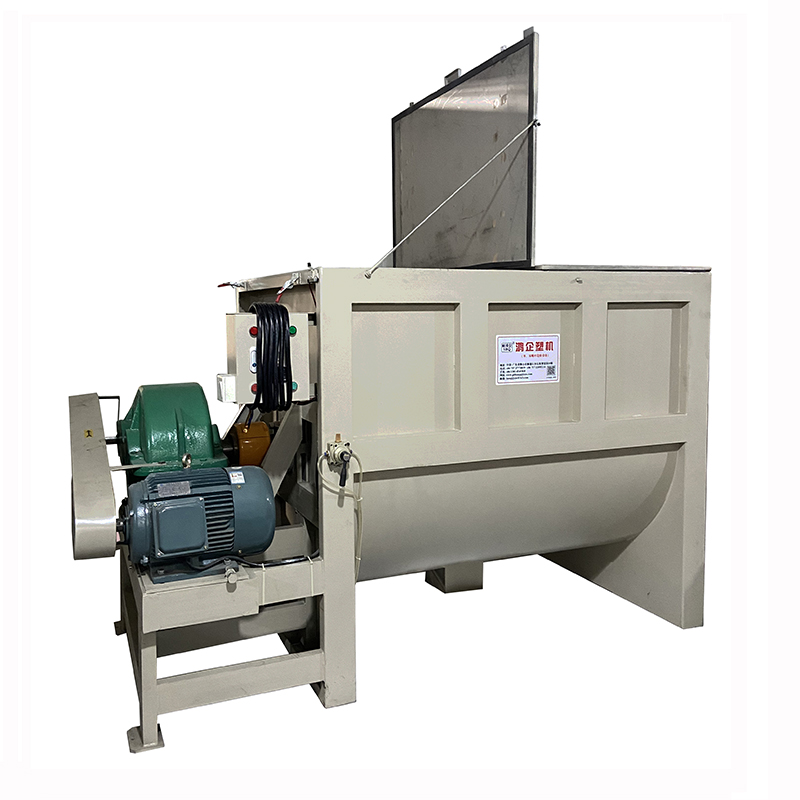

A ribbon mixer is a high-efficiency industrial blending machine designed for thorough and uniform mixing of plastic raw materials such as resin pellets, color masterbatch, additives, and powders. Its horizontal, dual-spiral ribbon structure ensures consistent blending performance while protecting material integrity. In the plastics industry, the ribbon mixer plays an essential role in pre-processing and color uniformity, helping manufacturers achieve stable product quality, reduce material waste, and increase production efficiency.
Below is a detailed introduction to the working principle, structural features, advantages, application areas, and maintenance guidelines of ribbon mixers specifically designed for plastic compounding and processing lines.
The ribbon mixer uses two layers of helical ribbons—an inner ribbon that pushes material outward and an outer ribbon that moves material inward. This counter-flow motion ensures the material circulates thoroughly within the trough, creating a fast and uniform blending effect.
During operation, the motor drives the shaft via a gear reducer, rotating the ribbon at moderate speed. Each particle of material travels through multiple mixing paths—axial, radial, and circumferential—until complete homogeneity is achieved. This design prevents material layering and is especially suitable for plastic granules and powder additives that differ in size or density.
Body: Heavy-duty stainless steel U-shaped tank providing durability and easy access for cleaning.
Ribbon Agitator: Dual-helix ribbons designed for both forward and backward movement of materials.
Motor and Gear Reducer: Ensures strong torque output and smooth rotation.
Distribution Box: Controls start, stop, and timing functions.
Discharge Valve: Pneumatic or manual bottom valve for complete discharge.
Heating Jacket (optional): Enables thermal oil heating for drying or melting additives before extrusion.
Model | Power (kW) | Capacity (kg) | Heating Power (kW) | Dimension (mm) |
---|---|---|---|---|
HQ-0.5TH | 7.5 | 500 | 6 | 2500×900×1700 |
HQ-1TH | 11 | 1000 | 12 | 2650×1300×2100 |
HQ-2TH | 18.5 | 2000 | 24 | 3800×1300×2500 |
HQ-3TH | 22 | 3000 | 24 | 4420×1650×2500 |
HQ-5TH | 30 | 5000 | 30 | 6000×2500×3000 |
The 500 KG and 1000 KG heating models are particularly popular for plastic processors, ensuring stable mixing and drying performance.
The ribbon structure ensures fast, even distribution of colorants, lubricants, and fillers. Mixing time is usually 5–10 minutes per batch, with uniformity reaching CV ≤ 5%, meeting the requirements of plastic compounding standards.
With the integrated thermal oil heating system, the mixer maintains constant temperatures, ideal for:
Preheating resin granules for drying.
Activating additives and stabilizers.
Improving flow performance before extrusion or injection molding.
The heavy-duty gear reducer and precision bearings reduce mechanical resistance, extending the service life of the machine. The U-type trough and reinforced frame ensure stability even during continuous 24-hour operation.
The top cover opens widely for raw material loading and cleaning. All contact surfaces are smooth and can be easily wiped down or cleaned by compressed air to prevent cross-contamination between batches.
Equipped with emergency stop, overload protection, and limit switches.
Can be integrated with PLC control systems for automated weighing and timing functions.
Optional dust cover prevents particle spillage during mixing.
Ribbon mixers are widely applied in pre-processing and masterbatch blending before extrusion, molding, or pelletizing. Their adaptability to multiple materials makes them a cornerstone of plastic compounding systems.
Used to mix virgin and recycled resin, ensuring color and density uniformity for consistent extrusion performance.
Blends colorants with polymer carriers such as PP, PE, PVC, or ABS for homogeneous color distribution in downstream production.
Ensures accurate mixing of lubricants, flame retardants, UV stabilizers, and anti-static agents into resin powders or pellets.
Thermal-oil jacketed ribbon mixers preheat raw materials to remove moisture, improving extrusion and pelletizing stability.
For PVC and EVA powder processing, heated ribbon mixers ensure moisture content remains below acceptable levels to prevent air bubbles during molding.
Proper maintenance ensures consistent output and extends the machine’s lifespan, especially under continuous plastic processing environments.
Verify the motor and reducer oil levels before start-up.
Check that the discharge valve is closed and secure.
Load materials according to rated capacity (50–70% of total volume).
Start the mixer, ensuring no abnormal vibrations or sounds.
Run for the set mixing duration and then discharge completely.
Frequency | Task | Description |
---|---|---|
Daily | Clean mixer | Remove remaining pellets and dust using compressed air. |
Weekly | Lubricate bearings | Ensure smooth operation of main and auxiliary shafts. |
Monthly | Inspect ribbons | Check for wear, cracks, or deformation. |
Quarterly | Check electrical components | Inspect distribution box, sensors, and safety switches. |
Do not open the cover while the mixer is running.
Ensure the thermal oil system pressure is within the safe range.
Disconnect power before performing maintenance.
Use protective gloves when handling heated surfaces.
Uniformly mixed plastic granules ensure consistent melt flow index, color tone, and physical properties during extrusion or injection molding.
Shorter mixing time means faster turnover between batches, supporting high-capacity compounding lines.
Precise blending avoids overuse of expensive additives, minimizing material loss and ensuring cost efficiency.
Ribbon mixers can be paired with:
Screw Conveyors for automatic feeding.
Extruders or granulators for inline processing.
Vacuum loaders and weighing hoppers for smart material handling.
Closed mixing design reduces dust and particle loss, creating a cleaner and safer production environment.
A ribbon mixer for plastics is an essential piece of blending equipment that ensures uniform material quality, efficient additive dispersion, and precise temperature control across the entire production process. Its robust structure, high efficiency, and flexible customization options make it ideal for mixing resin pellets, masterbatches, and additives.
For plastic manufacturers, investing in a high-quality ribbon mixer improves consistency, boosts throughput, and enhances product stability. With options like thermal oil heating, PLC automation, and stainless-steel construction, it provides a dependable and energy-efficient solution for any plastic compounding or extrusion line.
