A ribbon blender is a widely used industrial mixing machine designed for homogeneously combining powders, granules, and other bulk materials. It’s commonly found in industries like food processing, chemicals, pharmaceuticals, construction materials, and plastics. The efficiency and consistency of this machine make it a key piece of equipment in any production line that requires dry material mixing. This article explains in detail how a ribbon blender works, its design structure, mixing mechanism, and operational features.

1. Overview of a Ribbon Blender

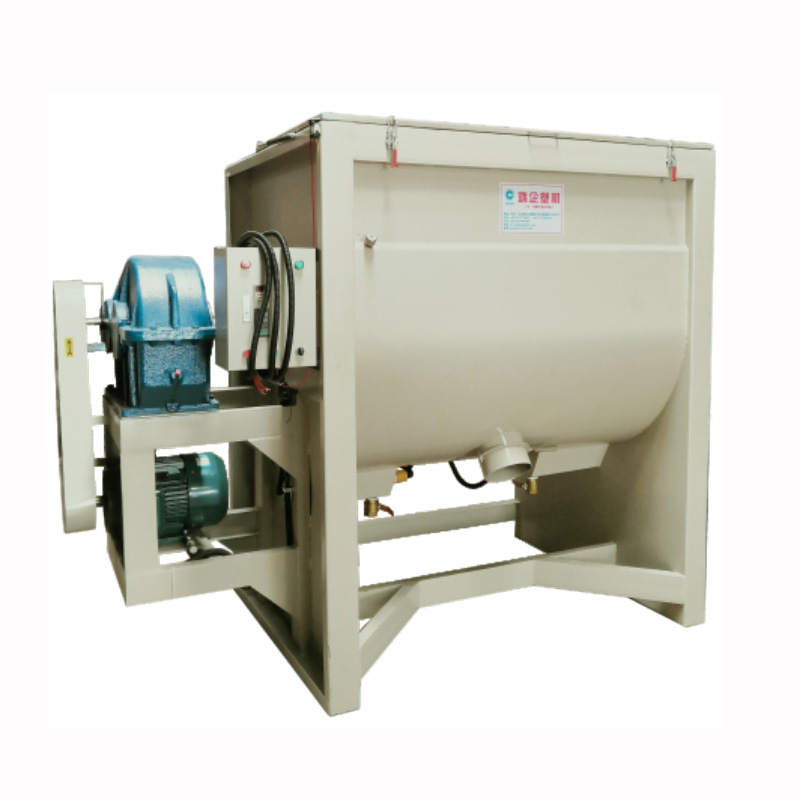

A ribbon blender, sometimes referred to as a horizontal ribbon mixer, is a horizontal U-shaped tank equipped with a central shaft and ribbon-shaped agitators. These agitators move the material both radially and axially, ensuring a thorough blend. The basic structure includes four main parts: the mixing tank, the ribbon agitator, the motor drive system, and the discharge valve.

The combination of these elements creates a continuous movement of particles, ensuring all ingredients are evenly distributed within a short period.

2. Working Principle of a Ribbon Blender

The ribbon blender operates on a convective mixing principle, which combines materials by mechanically moving them in opposing directions. The machine achieves this by means of its double helical ribbon blades, which rotate within the U-shaped chamber.

2.1 The Dual Ribbon Movement

Inside the blender, two sets of helical ribbons rotate around a horizontal axis:

• The outer ribbon pushes materials from the sides of the tank toward the center.

• The inner ribbon simultaneously pushes materials from the center toward the sides.

This counter-flow motion creates a thorough mixing pattern that blends materials of different densities and particle sizes.

Illustration of movement:

This opposing flow pattern results in high shear and continuous circulation, achieving a uniform mix within 5 to 15 minutes, depending on the material properties and batch size.

2.2 Power Transmission and Control

The motor, typically mounted on one side of the machine, drives the shaft through a reduction gearbox and sometimes a belt coupling. The gearbox adjusts the rotation speed, maintaining optimal torque even when handling heavy or sticky materials. Modern ribbon blenders include control panels for regulating speed, mixing duration, and safety features such as emergency stop switches and overload protection.

2.3 Discharge Process

After mixing, the product is discharged through a valve at the bottom of the tank. The discharge mechanism can be manual or pneumatic, depending on automation requirements. The valve is positioned centrally to ensure complete emptying, minimizing residue inside the chamber. In some designs, a butterfly valve or slide gate valve is used for smooth control over flow rate.

3. Mixing Efficiency and Performance Factors

The effectiveness of a ribbon blender depends on several mechanical and operational factors. Each parameter contributes to achieving the ideal blend ratio and product consistency.

3.1 Ribbon Design and Pitch

The width, thickness, and pitch of the ribbons determine how materials circulate within the chamber. A smaller pitch increases the mixing time but enhances uniformity, while a larger pitch allows faster mixing but may result in less homogeneity. Standard ribbon clearances from the wall are maintained within 3 to 6 millimeters to reduce dead zones and prevent material buildup.

3.2 Mixing Time and Speed

Mixing duration generally ranges from 5 to 20 minutes depending on the batch characteristics. The shaft speed is kept between 20 to 100 RPM—enough to create sufficient turbulence without causing degradation or excessive heat buildup. Over-mixing can lead to particle breakage, while under-mixing leaves visible segregation.

3.3 Load Capacity and Fill Volume

A ribbon blender performs best when filled between 40% to 70% of its total volume. Below this level, the ribbons may not generate enough contact between materials; above it, the motion becomes restricted, reducing efficiency and increasing wear on mechanical parts.

3.4 Material Properties

The density, moisture content, and flow characteristics of materials significantly influence mixing efficiency. For example:

• Free-flowing powders like flour or resin mix quickly.

• Cohesive powders such as starch or clay require longer mixing cycles.

• Granular blends may need variable speed adjustments for optimal results.

3.5 Energy Consumption

Modern ribbon blenders are designed for energy efficiency. A typical 500-liter unit consumes about 5–7 kWh per batch. This low power requirement, combined with a short cycle time, makes ribbon blenders one of the most cost-effective mixing solutions for medium to large-scale production.

4. Advantages and Industrial Applications

Ribbon blenders are favored in various industries because of their simplicity, versatility, and consistency. They can handle a wide range of materials, from lightweight powders to viscous pastes, depending on design modifications.

4.1 Key Advantages

1. Uniform Mixing:
   The counter-directional movement of ribbons ensures complete blending, even for multi-component mixtures with different densities or particle sizes.

2. Short Mixing Time:
   Due to the high-efficiency convective flow, most batches can be completed within minutes, improving overall production throughput.

3. Gentle Handling:
   The relatively low rotational speed prevents product degradation, making it ideal for fragile materials such as food ingredients or granules.

4. Easy Maintenance:
   The structure allows quick disassembly and cleaning. Removable lids and smooth internal surfaces minimize residue and contamination risks.

5. Scalability:
   Ribbon blenders are available in capacities ranging from 50 liters to over 10,000 liters, suitable for laboratory, pilot, or full-scale manufacturing lines.

6. Customization:
   Options such as jacketed tanks for heating or cooling, spray systems for liquid coating, and vacuum sealing for moisture-sensitive materials can be integrated.

4.2 Common Applications

5. Operational and Safety Considerations

5.1 Pre-Operation Checklist

Before starting a batch, operators should:

• Inspect the ribbon assembly for any obstructions or loose parts.

• Verify the oil level in the gearbox and ensure the motor is functioning properly.

• Confirm that the safety covers and limit switches are securely closed.

• Calibrate the control panel for the desired speed and duration.

5.2 During Operation

Operators must monitor:

• Motor amperage: A sudden rise indicates overloading or jamming.

• Mixing sound: Abnormal noise can suggest worn bearings or imbalance.

• Temperature: Excessive heat can degrade heat-sensitive materials.

5.3 Post-Operation Maintenance

After completion:

• Clean the tank with compressed air or mild detergent depending on residue type.

• Lubricate moving parts regularly.

• Periodically inspect the ribbons for wear and replace if clearance exceeds specification.

Summary

The ribbon blender works through a simple yet highly effective mixing mechanism that uses counter-rotating helical ribbons to achieve uniform material distribution. Its combination of mechanical reliability, low energy consumption, and fast operation makes it indispensable across numerous industries. By carefully adjusting mixing time, load volume, and speed, operators can optimize results for different materials.

In essence, the ribbon blender represents a perfect balance between engineering precision and production efficiency. For businesses seeking consistent and scalable dry mixing performance, investing in a high-quality ribbon blender ensures reliability, safety, and cost-effectiveness over the long term.
