A plastic Pelletizing Extrusion Machine is composed of two key units — the extruder and the pelletizer. They work together to transform raw plastic materials or recycled polymers into uniform pellets that can be reused in molding, extrusion, or compounding. Although both are part of the same line, they perform different roles within the process. Understanding how they differ helps manufacturers optimize production efficiency and product quality.

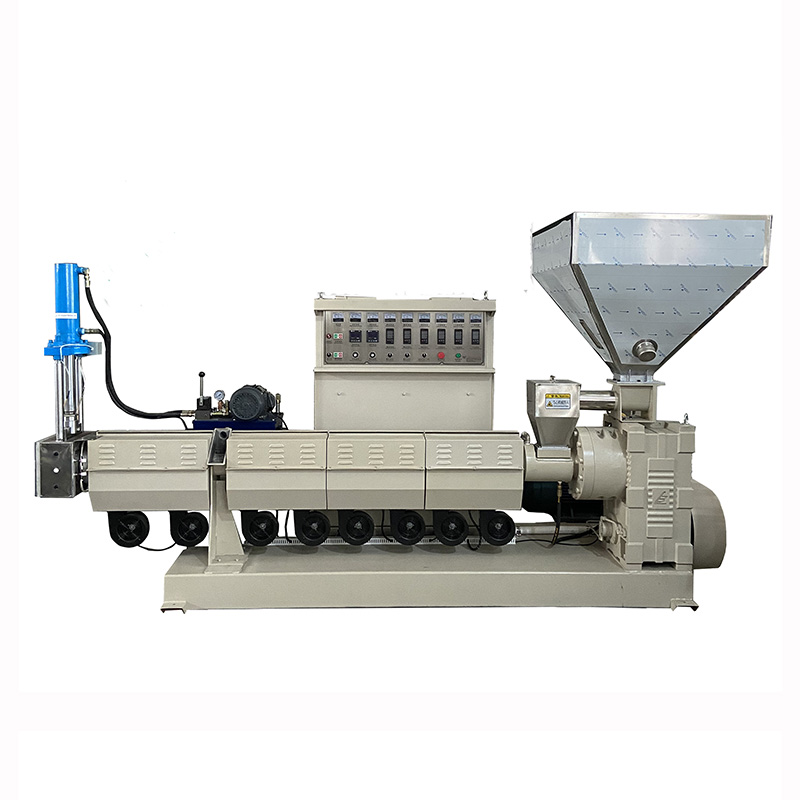

An extruder is the first and most important part of a plastic pelletizing system. Its main function is to melt, mix, and pressurize the plastic material into a continuous molten form. It converts solid particles such as flakes, powder, or crushed plastic into a homogeneous melt ready for shaping or pelletizing.
The extruder is usually composed of:
Feeding hopper – supplies material into the barrel.
Screw and barrel – the rotating screw conveys, compresses, and melts plastic using friction and heating zones.
Heaters and cooling systems – maintain a stable processing temperature for controlled plasticizing.
Die head – shapes the molten material into continuous strands.
As the screw rotates, it generates heat and pressure. Plastic materials gradually melt and mix with additives or pigments before being pushed through the die, forming uniform strands.
| Function | Description |
|---|---|
| Melting | Turns solid plastic into a molten state. |
| Mixing | Blends additives, color masterbatch, and stabilizers. |
| Pressurizing | Builds the pressure needed to push the melt through the die. |
| Shaping | Produces uniform molten strands for pelletizing. |
In essence, the extruder is responsible for material preparation — turning solids into a homogeneous molten mixture.
A pelletizer is the second part of the system, located downstream of the extruder. Its job is to cut, cool, and solidify the molten strands into small, uniform plastic pellets. These pellets serve as standard raw materials for various plastic manufacturing processes.
The pelletizer typically includes:
Cutter or rotating blades – cut the strands into equal lengths.
Cooling system – cools the molten strands, usually through air or water.
Drying unit – removes surface moisture from pellets.
Collection bin – gathers finished pellets for packaging or reuse.
| Type | Description | Typical Use |
|---|---|---|
| Strand Pelletizing | Strands are cooled in water and then cut. | Most general-purpose plastics |
| Die-Face (Hot Cut) | Strands are cut immediately at the die head before cooling. | High-output production |
| Underwater Pelletizing | Cutting and cooling occur simultaneously under water. | Engineering and high-melt polymers |
| Function | Description |
|---|---|
| Cutting | Converts strands into pellets of uniform size. |
| Cooling | Stabilizes shape and prevents pellet sticking. |
| Drying | Removes water or moisture from the surface. |
| Collection | Prepares finished pellets for packaging or next-stage use. |
In essence, the pelletizer handles final shaping — turning molten strands into usable plastic granules.
Though they work together, the extruder and pelletizer serve distinct roles in the plastic pelletizing line.
| Comparison Item | Extruder | Pelletizer |
|---|---|---|
| Position in Line | Upstream (first stage) | Downstream (second stage) |
| Main Function | Melts, mixes, and extrudes material | Cuts, cools, and dries extruded strands |
| Output Form | Continuous molten strands | Uniform plastic pellets |
| Temperature Range | High temperature (melting process) | Cooling or ambient temperature |
| Core Components | Screw, barrel, die head, heaters | Cutter, cooling system, dryer |
| Key Control Factors | Temperature, screw speed, pressure | Cutting speed, pellet size, cooling rate |
| Purpose | Material preparation | Product finishing |
| Typical Operation Speed | 30–100 RPM (depends on material) | High-speed rotation of blades |
| Material State | Melted and pressurized | Solidified and cooled |
| End Use | Feeds to pelletizer or directly to forming equipment | Feeds to injection, extrusion, or molding lines |
The extruder and pelletizer are interdependent:
The extruder melts and homogenizes the material.
The molten strands exit through the die plate.
The pelletizer cuts these strands into uniform pellets.
Without the extruder, the pelletizer would have no material to process; without the pelletizer, the extruder’s output would remain unmanageable strands. Together, they form a continuous, efficient cycle from raw plastic to finished pellet.
In summary, the extruder and pelletizer are two essential components that work in sequence within a Plastic Pelletizing Extrusion Machine—the extruder melts, mixes, and pressurizes raw or recycled plastic into a uniform molten flow, while the pelletizer cuts, cools, and solidifies that flow into evenly sized pellets. The extruder ensures material homogeneity and stable output through precise temperature and screw control, whereas the pelletizer provides consistent pellet dimensions for efficient feeding, transportation, and reuse. Together, they form a continuous, efficient system that converts diverse plastic materials into high-quality, reusable granules suitable for molding, extrusion, or compounding production lines.
