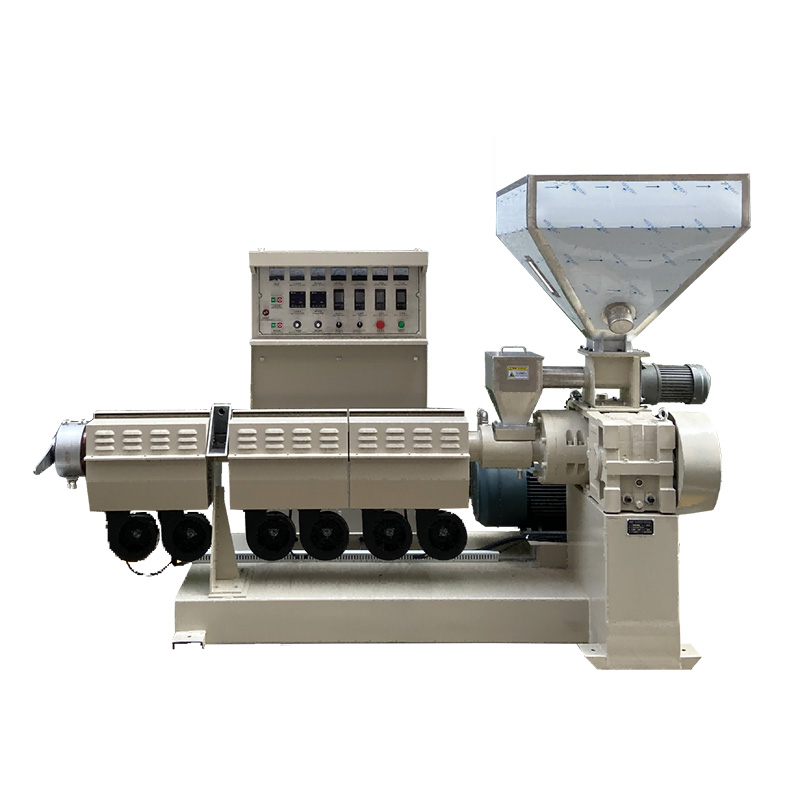

A plastic extruder machine is one of the most important pieces of equipment in modern plastic manufacturing and recycling. It converts raw materials such as plastic pellets, flakes, or powder into continuous shapes—like pipes, films, or granules—through controlled heat, pressure, and mechanical force. Building or assembling a high-performance extruder requires both engineering precision and industrial experience.
At HONGQI Plastic Machinery, we have spent over 20 years refining the design, construction, and performance of single-screw and twin-screw Plastic Extrusion Machines. Our systems are built using advanced CNC machining, efficient motors, and optimized heating zones, delivering stable output, low energy consumption, and long service life.
This article explains how a plastic extruder machine is made, the key components involved, and the critical manufacturing process that ensures HONGQI’s equipment meets global industrial standards.
Before discussing how to make a plastic extruder machine, it’s essential to understand what defines its performance. Every extruder, whether single-screw or twin-screw, follows a consistent structure—but the precision of manufacturing and material quality determines its efficiency.
A plastic extruder works by melting and pressurizing plastic materials in a heated barrel and forcing them through a die to form a specific shape.
The process may look simple, but achieving perfect plastic homogenization, temperature stability, and screw pressure requires accurate mechanical design and strict production control.
| Section | Function | Material / Requirement |
|---|---|---|
| Feeding System | Delivers raw plastic evenly into the barrel | Hopper with vibration feeder or automatic loader |
| Barrel & Screw | Melts, mixes, and conveys materials | Alloy steel, nitrided or bimetal surface |
| Heating System | Controls melting temperature | Ceramic or cast aluminum heaters |
| Drive System | Powers screw rotation | High-efficiency motor with gearbox |
| Die Head | Shapes molten plastic into desired form | Tool steel, precision-polished for flow uniformity |
| Cooling & Cutting System | Solidifies and sizes the extruded product | Water bath or air cooling with pelletizer |
The integration accuracy of these components defines the final performance. That’s why HONGQI machines undergo multiple CNC machining and testing stages to ensure tight assembly tolerance and zero leakage during operation.
Designing and producing an extruder machine involves multiple engineering disciplines—mechanical, thermal, and electronic. Below is the typical process used in industrial-scale manufacturing.
Creating a high-efficiency extruder begins with precision design.
Material flow analysis: Engineers simulate how plastic moves, melts, and exits through the die to prevent dead zones or overpressure.
Screw design optimization: The screw’s pitch, length-to-diameter ratio (L/D), and compression ratio are calculated based on material type—e.g., PP, PE, or PET.
Thermal management planning: Heating zones are arranged strategically to maintain steady temperature gradients from feed to die.
Motor and gearbox selection: Power output and torque are matched to screw geometry for balanced performance.
At HONGQI, we use 3D CAD modeling and digital simulation to predict extrusion flow behavior, improving output consistency before the first prototype is built.
Once designs are finalized, all components are produced using CNC machining technology for accuracy.
| Component | Machining Process | Key Tolerance |
|---|---|---|
| Screw | CNC turning, polishing, and hard nitriding | ≤0.02 mm concentricity |
| Barrel | Deep boring and honing | Uniform wall thickness |
| Gearbox | Gear hobbing and heat treatment | Minimal vibration and noise |
| Die Head | EDM cutting and surface grinding | Smooth flow channel finish |
This stage ensures that each part fits perfectly and withstands the high temperature (up to 300°C) and pressure (up to 25 MPa) inside the extruder.
During assembly, engineers align the screw, barrel, and drive system to guarantee straight axial rotation and zero material leakage.
Bearings and seals are installed to minimize friction and ensure long-term stability.
Heaters, thermocouples, and cooling fans are mounted in controlled zones for balanced heat distribution.
Electrical cabinets are wired with PLC control systems for temperature, pressure, and speed automation.
At HONGQI, our assembly team uses laser alignment systems to achieve perfect coaxial precision, reducing mechanical wear and improving extrusion stability.
Before delivery, every extruder undergoes multi-stage performance testing:
No-load test: Checks motor vibration, gearbox smoothness, and temperature stability.
Load test: Processes real plastic materials to verify melting, output, and pressure consistency.
Energy consumption audit: Confirms efficiency standards are met.
Safety inspection: Ensures all electrical and mechanical systems comply with CE and ISO9001:2015.
HONGQI’s machines must achieve a 100% qualification rate before leaving the factory—guaranteeing reliability for clients worldwide.
Constructing a reliable extruder is not only about assembling components but also optimizing performance parameters that define its long-term efficiency.
The screw is the heart of the extruder—it determines how evenly materials are melted and mixed. Its geometry influences productivity and material quality.
| Design Factor | Effect |
|---|---|
| Pitch and Depth | Affects conveying rate and pressure build-up |
| Compression Ratio | Controls melting efficiency |
| L/D Ratio (Length/Diameter) | Longer ratios allow better mixing and output control |
| Material Coating | Nitrided or bimetallic coating resists wear from abrasive polymers |
At HONGQI, each screw is made from 38CrMoAlA alloy steel, precision-polished and nitrided to ensure surface hardness ≥ HV900, offering extended durability.
Temperature management is the most crucial aspect of extrusion stability.
An extruder typically includes 4–8 heating zones with independent controls:
Feed Zone: Gradual preheating avoids thermal shock.
Compression Zone: Main melting occurs; temperature is carefully stabilized.
Metering Zone: Maintains uniform viscosity before extrusion.
Die Zone: Final shaping; requires consistent heat for smooth flow.
HONGQI machines feature ceramic band heaters with PID temperature control, ensuring ±1°C accuracy—critical for complex polymer blends.
The motor and gearbox define how efficiently energy is transferred to the screw.
High-torque motors provide steady rotation under pressure.
Helical gearboxes minimize noise and mechanical loss.
Frequency inverters adjust speed for various material types.
HONGQI’s extrusion machines use energy-efficient Siemens or ABB motors, coupled with precision gear reducers, reducing power consumption by up to 20%.
Modern extruders are fully automated for safety and precision.
PLCs monitor temperature, torque, and pressure in real-time.
Alarms automatically trigger during overload or temperature deviation.
Touchscreen panels allow simple operation and data logging.
This intelligent control design is what distinguishes HONGQI machines—combining industrial robustness with digital precision.
Building an extruder machine is a high-precision engineering task. While small-scale or DIY models can demonstrate basic extrusion principles, industrial-grade extruders require advanced design, safety compliance, and quality materials to function reliably.
With over two decades of experience, HONGQI Plastic Machinery integrates:
CNC manufacturing for accuracy and consistency.
Certified materials that meet ISO9001:2015 and CE standards.
24-hour technical support for customers worldwide.
Customized configurations to handle various plastics: PE, PP, ABS, PA, PET, and others.
We specialize in:
Single-Screw Plastic Pelletizing Extrusion Machines – For general recycling and re-granulation.
Twin-Screw Plastic Pelletizing Extrusion Machines – For high-performance compounding and masterbatch production.
Each model provides stable pressure output, uniform pellet quality, and optimized power savings.
HONGQI extruders are designed for multiple manufacturing and recycling processes:
| Industry | Application | Typical Output |
|---|---|---|
| Recycling Plants | Re-pelletizing plastic waste | Uniform recycled pellets |
| Compounding Plants | Mixing polymers and additives | Engineering-grade materials |
| Packaging Industry | Film and sheet extrusion | Thin, high-strength films |
| Cable & Pipe Industry | Insulation or pipe extrusion | Continuous profiles |
Our clients include global plastic manufacturers and recyclers who rely on consistent, high-efficiency extrusion systems.
The long-term value of a professionally made extruder lies in its ease of operation and low maintenance requirements:
Quick screw disassembly for cleaning and replacement.
Minimal downtime due to modular design.
Real-time diagnostics reduce maintenance costs.
By focusing on durability, simplicity, and energy conservation, HONGQI machines deliver a fast return on investment for industrial users.
Building a plastic extruder machine is both a science and an art. It requires expertise in mechanical design, temperature control, material behavior, and automation. Every screw, barrel, and die must be engineered with precision to ensure uniform melting, efficient pressure generation, and long-term reliability.
At HONGQI Plastic Machinery, we don’t just assemble machines—we engineer performance. Our Single-Screw and Twin-Screw Plastic Extrusion Machines are the result of decades of R&D, advanced manufacturing, and customer-driven innovation.
