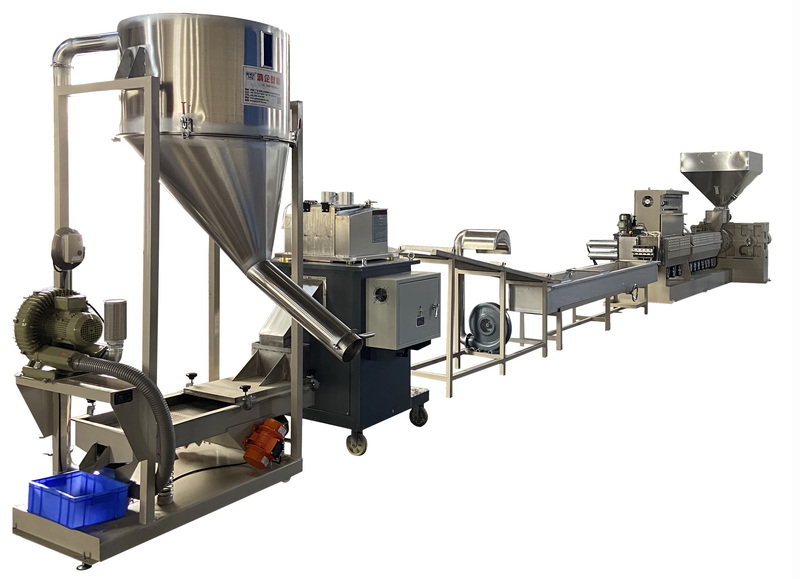

The PET Granulator Machine is an advanced device designed for efficient granulation of PET and PP plastics. Its superior performance and stable operation ensure that every production batch meets high quality standards. It can process a variety of plastic waste materials, such as electronic housings, computer equipment, household items, and toys, into high-quality plastic pellets, providing an efficient and reliable solution for the plastics recycling and processing industry.

PET Granulator Machine Parameters

Single Screw Plastic Pelletizing Extrusion Machine Parameters

Standard Production Line Configuration

PET Granulator Machine Features

1. High Capacity

The HQ-120 single-screw PET Granulator Machine can process 380 to 550 kg of plastic material per hour. Compared to other similar machines on the market, the HQ-120 boasts approximately 20% to 30% higher capacity, producing more plastic pellets in the same amount of time, meeting the demands of large-scale production.

2. Powerful Power and High Energy Efficiency

The PET Granulator Machine is equipped with a 110kW variable-frequency motor, ensuring strong power output and stable operating performance. Compared to traditional fixed-speed motors, the variable-frequency motor automatically adjusts power according to load changes, achieving energy savings of 15% to 20%. Furthermore, a gear oil cooling and filtration system effectively reduces gear wear and failure, extending the machine's service life and reducing maintenance costs and downtime.

3. Precision Pelletizing

The HQ-120 is equipped with an advanced pelletizing system featuring 28 rotating blades and fixed tungsten carbide blades made of SKD-11 steel. The pelletizer has a power of 7.5 kW and is equipped with variable frequency speed regulation, ensuring precision and stability during the pelletizing process. Compared to traditional pelletizing systems, the HQ-120 offers higher pelletizing accuracy and better pellet quality, meeting the stringent quality requirements of downstream plastic pellet processing.

4. Durable Materials and Construction

The machine's screw is made of high-quality SACM-21 material, which offers excellent strength and wear resistance, ensuring stability and reliability over extended operation. The hardness and toughness of SACM-21 material enable it to withstand the high temperatures, pressures, and friction generated during plastic processing, thereby extending the screw's service life.

5. Efficient Automation

The PET Granulator Machine is equipped with an advanced automated control system, including an 8-zone temperature control system and a dual-bolt continuous screen changer with a 15-hole nozzle, ensuring a highly automated and continuous production process. Compared to non-automated equipment, the HQ-120's automated control system can increase production efficiency by 40%-50% while reducing the risk of manual intervention and operational errors.

6. Stable Feeding System

The HQ-120 PET Granulator Machine is equipped with a high-performance feeding system. The feeder boasts 1500W power and utilizes variable frequency speed control, ensuring a stable supply of plastic raw materials and precise metering. Compared to traditional feeding systems, the HQ-120's feeding system excels in stability and accuracy, laying a solid foundation for the smooth operation of the entire production process.

Competitive Advantages

• High-Transparency Granules: Produces granules with excellent clarity, suitable for demanding applications such as preforms and sheets.

• Energy-Efficient Design: Optimized for low energy consumption, meeting environmental and sustainability standards.

• Durability and Longevity: The die head and screw are made of wear-resistant materials, extending machine life and boosting productivity.

PET Granulator Machine Application

1. Electronic Scrap Recycling

PET Granulators play a vital role in electronic scrap recycling. The rapid replacement of electronic products generates a vast amount of electronic waste, which contains numerous plastic components, such as computer casings, monitor housings, and printer parts. The HQ-120 single-screw plastic granulator efficiently processes this discarded plastic into high-quality pellets.

2. Home Appliance Plastic Recycling

The home appliance industry is a major consumer of plastics, with refrigerators, washing machines, air conditioners, and other appliances containing numerous plastic components. Once a home appliance is scrapped, these plastic components can be effectively recycled and reused using the HQ-120. For example, polypropylene (PP) and polyethylene (PE) are commonly used plastic materials in home appliances, and the HQ-120 efficiently processes them into pellets that meet quality standards. According to industry data, the performance of plastic pellets recycled in this manner is comparable to that of virgin plastic, but at a 30%-40% lower cost, providing a more cost-effective raw material option for home appliance manufacturers.

3. Automotive Plastic Parts Recycling

The automotive industry is a key area of plastics application, with cars containing numerous plastic parts such as bumpers, dashboards, and interior trim. The HQ-120 single-screw PET Granulator Machine can process a variety of automotive plastic waste, converting it into high-quality pellets for use in the manufacture of new automotive plastic parts or other plastic products. Research shows that using recycled plastic pellets to manufacture auto parts can reduce energy consumption by 70%-80% and lower greenhouse gas emissions, positively impacting the sustainable development of the automotive industry.

4. Packaging Plastic Recycling

The packaging industry consumes a significant amount of plastic materials, such as plastic film, plastic bottles, and plastic boxes. Most of this packaging plastic becomes waste after use, placing significant pressure on the environment. The HQ-120 can be used to process various packaging plastic waste materials, converting them into reusable resources. For example, when processing PET bottles, the HQ-120 can efficiently convert crushed PET bottle flakes into high-quality PET pellets. These pellets can then be reused in the manufacture of new plastic bottles, fiber products, and more.

5. Toy Plastic Recycling

The toy manufacturing industry widely uses various plastic materials, such as ABS, PP, and PE. As toys are replaced and damaged, a large amount of toy plastic waste is generated. The HQ-120 single-screw PET Granulator Machine processes this discarded toy plastic into high-quality pellets for use in manufacturing new toys or other plastic products. According to industry reports, using recycled plastic pellets to manufacture toys can reduce raw material costs by 35%-45%, while also aligning with sustainable development.

PET Granulator Machine Maintenance

1. Regularly Check Screw Wear

Regularly checking the screw wear of your PET Granulator machine is crucial to ensuring long-term, stable operation. It's recommended to shut down the machine and conduct a thorough screw inspection every 500 hours of operation. During inspection, focus on observing the screw surface for scratches, wear marks, and the integrity of the screw threads. Use precision measuring tools to measure the dimensions of each screw part and compare them to the original design dimensions. If screw wear exceeds 0.3mm, repair or replace it promptly.

2. Cleaning and Maintaining the Pelletizing System

The cleaning and maintenance of the pelletizing system directly impacts the quality and production efficiency of plastic pellets. The pelletizing system should be cleaned immediately after each production run. First, turn off the pelletizer power. After the blades have completely stopped rotating, open the pelletizing chamber and remove any remaining plastic pellets and debris. Use a dedicated cleaning tool, such as a copper or nylon brush, to gently scrub the blades and the interior of the pelletizing chamber to avoid scratching the blade surface. Then, inspect the blades for wear and replace them if necessary.

3. Monitor the Temperature Control System

The temperature control system is a key factor in ensuring the quality of plastic pelletizing. Operators should regularly monitor the equipment's eight-zone temperature control system to ensure that the temperature in each zone remains stable within the set range. It is recommended that the actual temperature of each zone be recorded daily before startup and every two hours during operation, and compared to the set temperature. If a zone's temperature deviation exceeds ±2°C, the heater, cooling fan, and temperature sensor should be checked promptly.

4. Maintain the Gearbox and Drive System

The proper operation of the gearbox and drive system is crucial to the equipment's power transmission and overall performance. A comprehensive inspection and maintenance of the gearbox is recommended every 300 hours of operation. First, check the gearbox oil level and quality to ensure that the oil is clean and within the required level. If impurities or water are found in the oil, replace the gear oil immediately. Next, inspect the gear meshing for signs of wear, cracks, or tooth spalling. Also, check the tension and wear of drive system components such as belts and chains, and adjust or replace them if necessary.

5. Clean and Inspect the Feed System

Cleaning and inspecting the feed system is crucial for ensuring a stable supply and accurate metering of plastic raw materials. It's recommended to clean and inspect the feed system weekly. First, turn off the feeder power, open the feed inlet, and remove any remaining plastic pellets and impurities from the feed inlet and feed channel. Use compressed air to blow out dust and debris from the feed system. Next, check the feeder's variable frequency speed controller for proper operation and the feed screw for signs of wear or deformation. If the feed screw is severely worn, replace it promptly.

6. Regularly Maintain the Cooling System

Regular maintenance of the cooling system is crucial to ensure quality cooling of plastic pellets and proper operation of the equipment. A comprehensive monthly maintenance of the cooling system is recommended. First, check the operation of the cooling fans to ensure that each fan is rotating properly and without abnormal noise. Clean any dust and dirt from the fan blades to improve heat dissipation efficiency. Next, check the water in the cooling water tank to ensure it is clean and free of impurities. If significant sediment is detected, clean the tank and replace the cooling water promptly. At the same time, check the working condition of the water suction motor and perform maintenance or replacement if necessary.

Contact Us

To learn more about our PET Plastic Extrusion Granulation Machine or to discuss customized production needs, contact our technical team today! We offer professional support and tailor-made solutions to ensure the best performance and pellet quality for your production line.

Optimize your PET granulation process with our cutting-edge technology!
