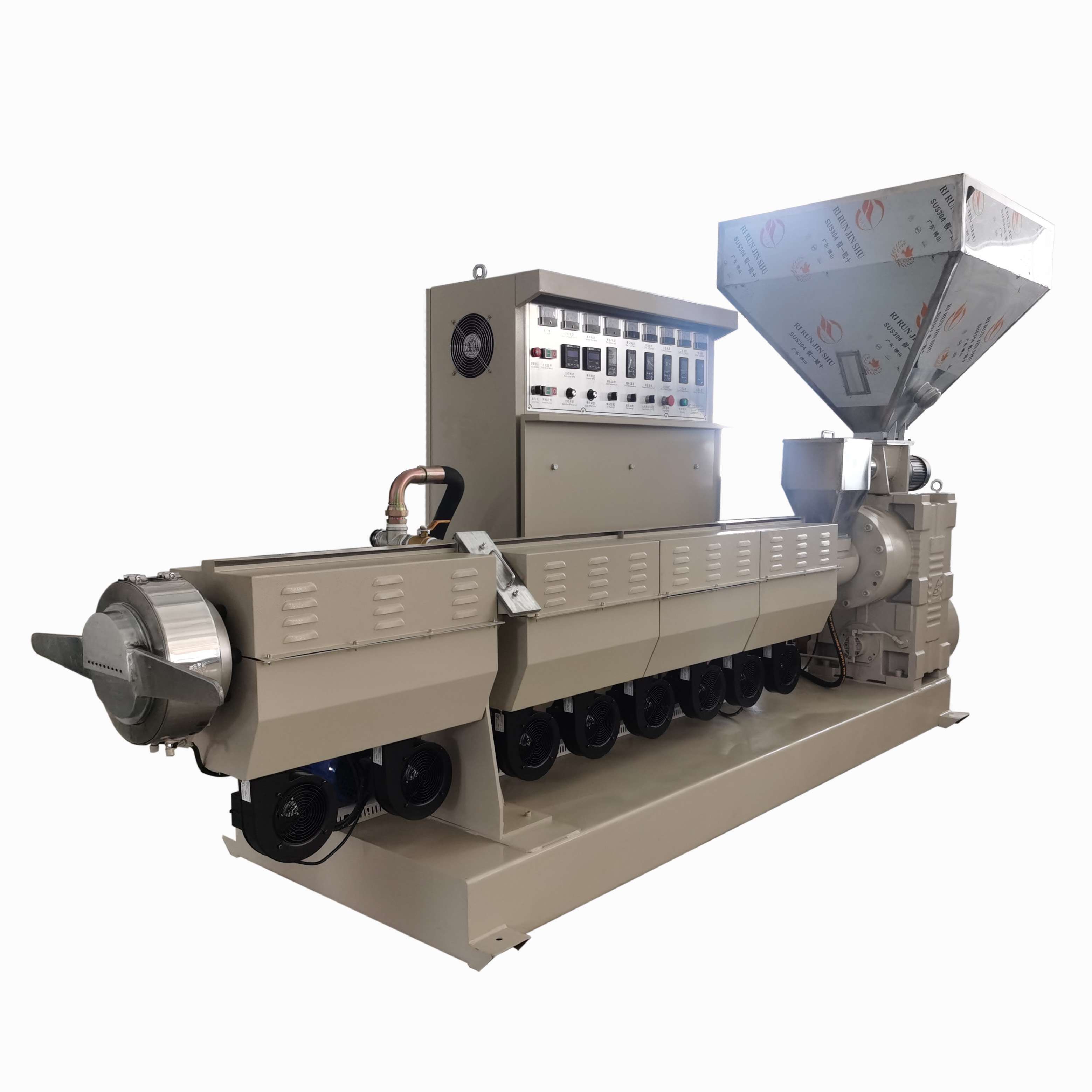

A plastic pelletizer is a critical machine in the plastic recycling and manufacturing industry. It converts raw plastic materials, such as flakes, regrind, or powder, into uniform pellets — a form that’s easier to handle, transport, and reuse in downstream processes like injection molding, extrusion, or film blowing. The pelletizing process plays a central role in ensuring material consistency and improving the overall quality of plastic products.
At HONGQI, we specialize in designing and producing both single screw and twin screw plastic pelletizing extrusion machines, engineered for precision, durability, and efficiency. Our systems are widely used in recycling, compounding, and plastic modification applications, delivering high output and stable performance under demanding production conditions.
In this article, we’ll explore in detail how a plastic pelletizer works, its core components, processing steps, and the technological differences between single and twin screw systems.
At its core, a plastic pelletizer transforms raw or recycled plastic into standardized pellets through melting, mixing, extruding, and cutting. The goal is to produce uniform granules with consistent density, color, and flow characteristics.
Feeding: Plastic material — flakes, granules, or powder — is fed into the hopper of the extruder.
Melting and Mixing: Inside the heated barrel, the plastic softens and becomes molten as it moves forward.
Homogenization: The rotating screw thoroughly mixes additives, colorants, or fillers into the molten plastic.
Extrusion: The molten mixture is pushed through a die head, forming continuous strands.
Cooling: The strands are cooled in water to solidify them.
Cutting: The solidified strands are cut into small, uniform pellets using a pelletizer.
Each of these steps is vital for achieving stable and high-quality pellets. The efficiency of melting, mixing, and cooling determines the physical properties of the final product.
HONGQI pelletizing systems are designed to maintain precise temperature control and optimal screw design, ensuring that materials are processed uniformly and efficiently without degradation. Whether using a single screw or twin screw configuration, HONGQI’s machines deliver consistent pellet size and superior material uniformity.
A plastic pelletizer system is composed of several interconnected units that work together to achieve continuous production. Understanding the function of each component helps clarify how the entire process operates smoothly.
| Component | Function | Description |
|---|---|---|
| Feeding Hopper | Material Input | Feeds plastic flakes, regrind, or powder into the extruder at a controlled rate. |
| Extruder Screw & Barrel | Melting & Mixing | Heats, compresses, and mixes the plastic material into a uniform molten mass. |
| Heater Zones | Temperature Control | Multiple heating zones maintain stable melting temperature throughout the barrel. |
| Die Head | Shaping | Forms molten plastic into continuous strands or filaments. |
| Cooling Tank | Solidification | Uses water to cool and solidify the extruded strands. |
| Pelletizer Cutter | Granulation | Cuts the cooled strands into uniform pellets. |
| Vibrating Sieve & Dryer | Finishing | Removes moisture and fines, producing clean, dry pellets ready for packaging. |
Each of these components must operate in harmony to achieve stable pellet output. The screw design, heating control, and cutting mechanism are especially crucial to performance and product quality.
HONGQI’s extruders are equipped with precision temperature controllers, high-torque gearboxes, and optimized screw geometry to ensure smooth material flow and efficient energy usage. The machines can handle a wide range of polymers including PP, PE, ABS, PET, PS, and recycled blends.
To fully understand how a plastic pelletizer works, let’s walk through each stage of the process in more detail, from raw material input to finished pellet output.
Plastic waste, resin, or flakes are introduced through the hopper. Depending on the setup, feeding can be manual, vacuum-assisted, or auto-dosing. Uniform feeding ensures stable throughput and prevents fluctuations in pressure or temperature within the barrel.
HONGQI single screw systems typically use a gravity-fed hopper with adjustable speed, ensuring consistent input and minimal bridging.
Inside the barrel, the plastic material is conveyed by a rotating screw. As it moves forward, friction and external heaters raise the temperature until the plastic melts.
In single screw extruders, the screw primarily performs melting and conveying.
In twin screw extruders, the intermeshing screws provide intensive mixing, ideal for blending additives and fillers.
The molten plastic achieves a homogeneous state, ensuring that colorants, stabilizers, and reinforcements are evenly distributed.
HONGQI twin screw pelletizers use co-rotating twin screws for powerful mixing and high throughput, making them ideal for plastic compounding and modification processes.
Once the plastic reaches optimal viscosity, it passes through the die head. The die determines the shape and diameter of the extruded strands.
Uniform pressure at the die exit is critical — uneven flow can cause inconsistent strand size, which affects pellet uniformity.
HONGQI’s precision die heads are made from hardened alloy steel and feature smooth internal channels to minimize flow resistance and maintain stable output.
The extruded strands are immediately guided into a water cooling tank to solidify. The cooling temperature must be carefully controlled to prevent cracking or deformation.
After cooling, the strands are dried using an air knife or blower to remove surface moisture before cutting.
The solidified strands enter the pelletizer, where rotating blades cut them into small, uniform pellets — typically 3–5 mm long.
The cutting speed determines pellet size consistency. Advanced systems include automatic length control to ensure uniformity.
HONGQI’s rotary cutter units are designed with adjustable blade angles and precision bearings to ensure clean, smooth cuts without dust or deformation. The pellets produced are ideal for reprocessing or direct use in downstream equipment.
After cutting, the pellets pass through a vibrating screen to separate any fines or irregular pieces, then move to a centrifugal dryer for final moisture removal. The result is clean, dry pellets with consistent size, color, and density — ready for packaging or reuse.
This entire sequence — from feeding to drying — is continuous, ensuring efficient production and consistent quality output.
The choice between a single screw and a twin screw plastic pelletizing extrusion machine depends on material type, processing goals, and required performance. Each configuration offers unique advantages.
| Feature | Single Screw Pelletizer | Twin Screw Pelletizer |
|---|---|---|
| Screw Design | One rotating screw | Two co-rotating intermeshing screws |
| Mixing Capability | Moderate | Excellent |
| Output Consistency | High for uniform materials | High for complex blends and additives |
| Best For | Simple recycling (PP, PE, PS) | Compounding, blending, or reinforced materials |
| Operation Cost | Lower energy consumption | Higher efficiency for advanced processes |
| Maintenance | Easier, fewer moving parts | Requires more precision in setup |
HONGQI’s single screw pelletizing machines are ideal for film recycling, regranulation, and general-purpose pellet production. They offer simple operation, stable extrusion, and high energy efficiency.
Meanwhile, HONGQI twin screw systems are engineered for high-performance compounding, where additives such as color masterbatch, fillers, or glass fibers need thorough dispersion. Their co-rotating screws enable excellent shear mixing and degassing, making them suitable for engineering plastics and modified materials.
Both systems share modular construction, allowing for easy maintenance, quick die changes, and customizable configurations to suit different applications.
Modern pelletizers are designed for automated operation, reducing manual intervention and increasing productivity. Key innovations in HONGQI machines include:
Automatic temperature regulation to prevent material degradation.
Intelligent PLC control systems for real-time monitoring.
Energy-efficient heating elements and optimized motor drives for reduced power consumption.
These technologies improve output stability and material consistency while lowering operational costs.
Plastic pelletizers are used across a wide range of industries, including:
Plastic recycling plants: Converting post-industrial or post-consumer plastic waste into reusable pellets.
Film production: Reprocessing film edge trim and offcuts.
Plastic compounding: Mixing base polymers with colorants or additives for customized performance.
Injection molding and extrusion factories: Preparing standardized feedstock for production.
HONGQI pelletizers are suitable for both virgin polymer processing and recycled material regranulation, providing flexibility for manufacturers who prioritize both quality and sustainability.
As the demand for sustainable and high-performance plastics grows, pelletizing equipment has evolved to meet new challenges. HONGQI focuses on:
Advanced screw designs for better mixing efficiency.
Improved degassing zones for removing volatile compounds.
Precision dies that reduce waste and improve pellet uniformity.
Eco-friendly water systems that minimize water usage and contamination.
By integrating these innovations, HONGQI ensures each plastic pelletizer delivers consistent results, reduces environmental impact, and supports the global shift toward circular production.
A plastic pelletizer is more than just a machine — it’s a complete system that transforms raw plastic materials into consistent, reusable pellets for manufacturing. The process involves feeding, melting, extruding, cooling, and cutting, with each stage carefully controlled for precision and efficiency.
At HONGQI, we combine years of engineering expertise with cutting-edge technology to produce single screw and twin screw plastic pelletizing extrusion machines that meet global standards for performance and reliability. Whether your goal is simple recycling or advanced polymer compounding, HONGQI’s systems deliver consistent output, superior pellet quality, and energy-efficient operation.
Explore our products:
HONGQI — where innovation meets reliability in plastic recycling and compounding technology.
