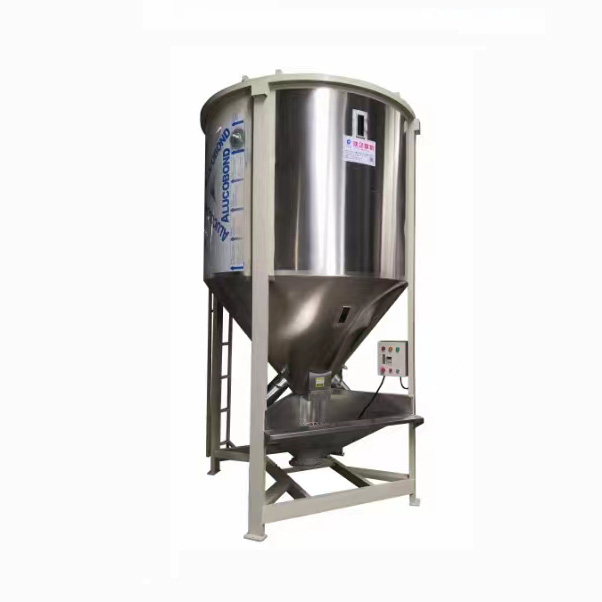

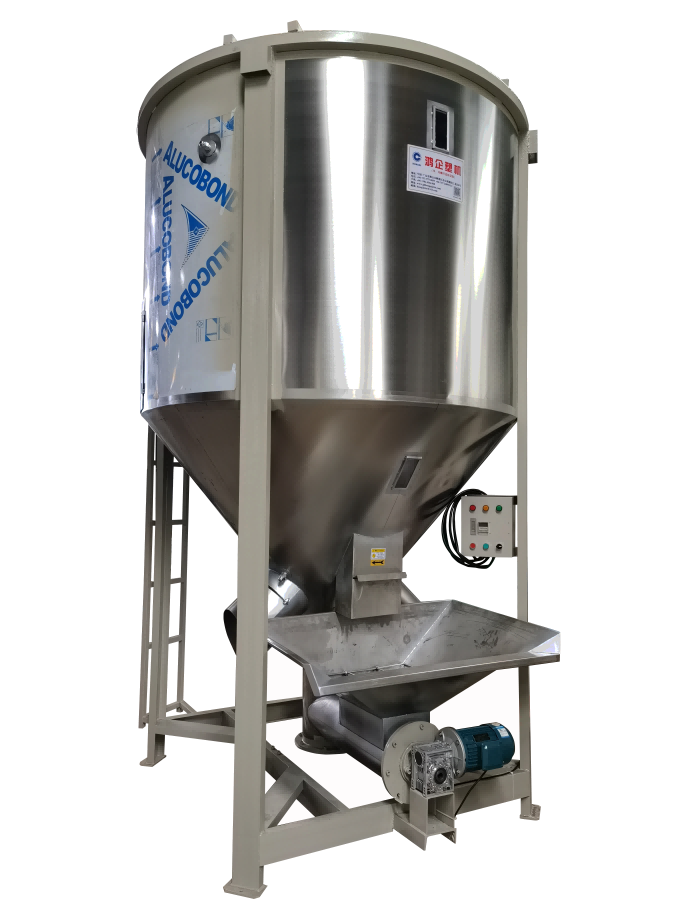

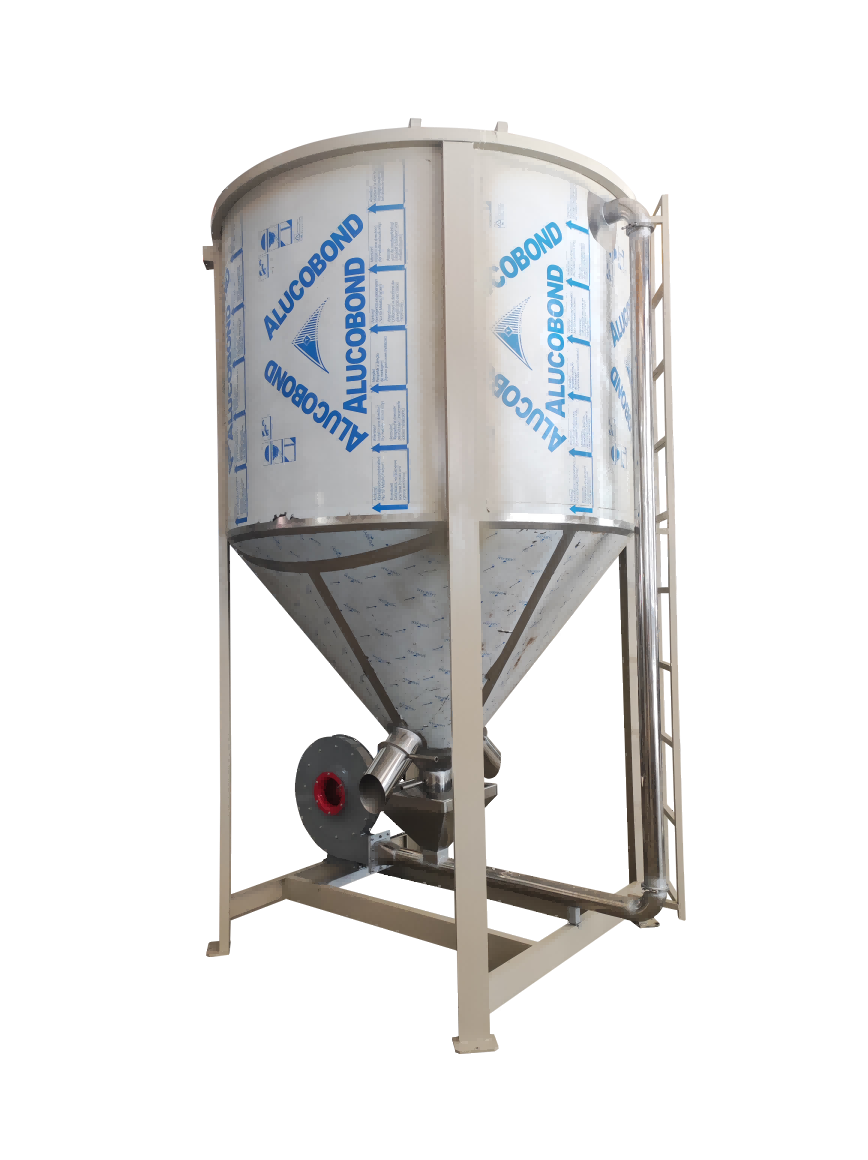

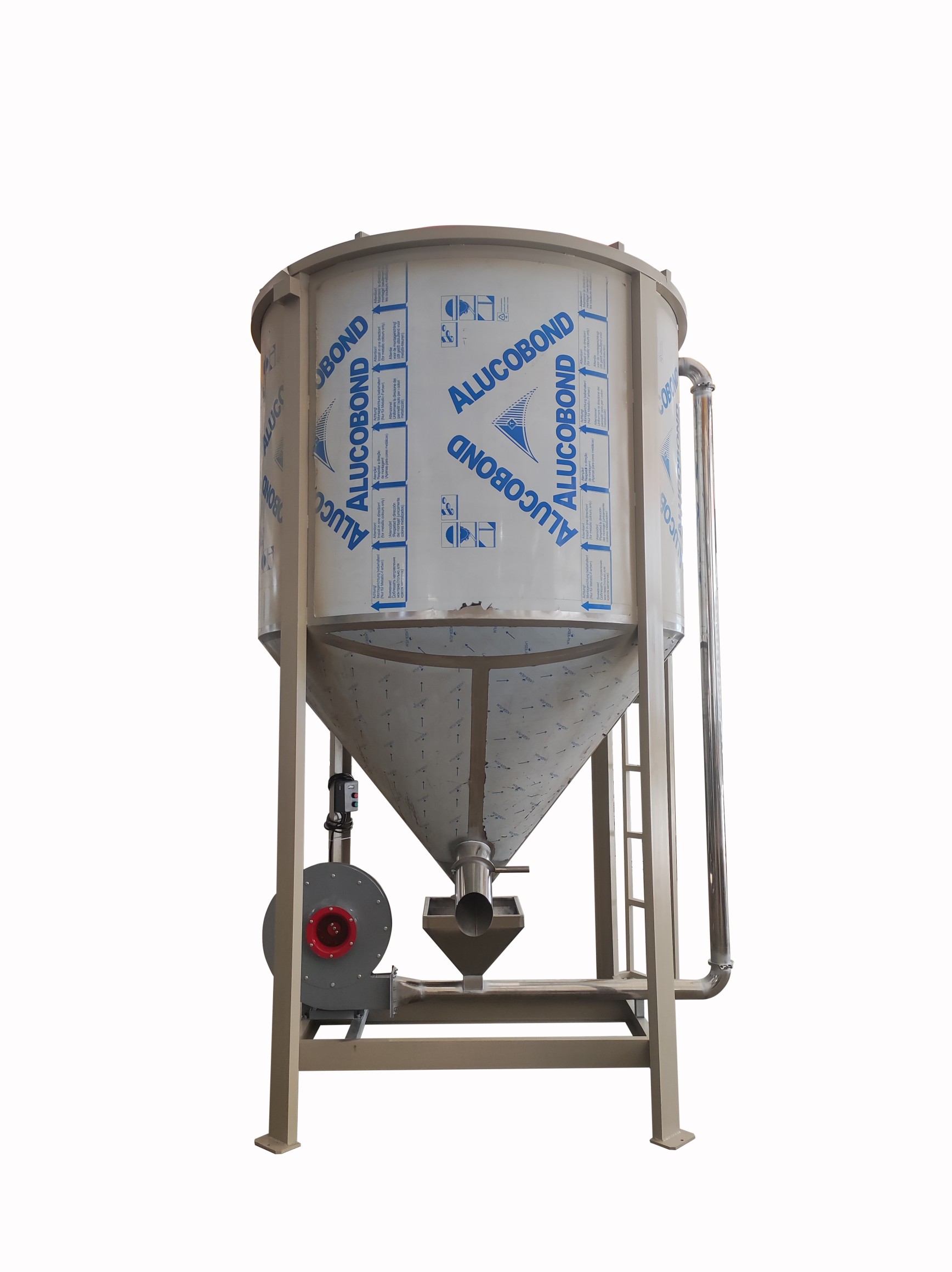

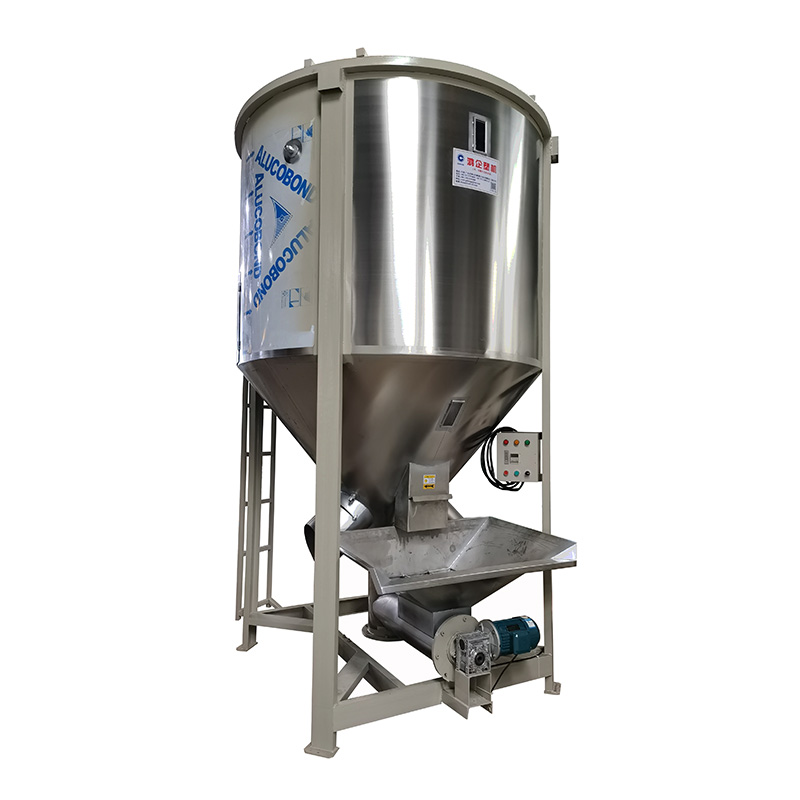

The plastic Granule Mixer is a vertical plastic material mixer with an integrated forced feeder. It is designed to process and mix large volumes of plastic materials and excels at handling lightweight items such as plastic flakes, sheets and powders. The machine's integrated forced feeder ensures a constant and uniform flow of material into the mixing chamber, optimizing the overall process flow, and can be configured with an optional heating system to meet specific production needs.

Plastic Granule Mixer Patameters：

Plastic Granule Mixer Features

1. Integrated forced feeding mechanism: The built-in forced feeder of the Plastic Granule Mixer effectively manages lightweight plastic materials such as flakes, granules and powders, ensuring a stable and consistent material input into the mixing chamber. The system prevents material blockage, ensures uniform mixing and improves mixing quality. The equipment is made of stainless steel, with a thickness of 2mm on the outer plate, 6mm on the bottom of the paddle, 4mm on the upper part, and 3mm on the inner tube.

2. Configurable heating options: The heating system can be selectively configured according to production needs, allowing for rapid and uniform heating and drying during the mixing process, suitable for applications that require preheating or dehumidification to improve material properties. The dimensions are 2100mm×3650mm.

3. Efficient vertical mixing: The vertical design is combined with mechanical stirring to achieve rapid and uniform mixing, and the forced feeding mechanism ensures a constant supply of materials, suitable for production environments with high-quality mixing requirements. The main motor power is 7.5KW, and the feed motor power is 2.2KW.

4. Compact vertical design: The vertical structure reduces the footprint and is suitable for facilities with limited space, while having the ability to handle large amounts of material. The mixing capacity can reach up to 3000 kg.

5. Easy to operate: Equipped with an easy-to-use control panel, operators can easily adjust mixing and heating parameters, support automation functions, reduce the need for manual adjustments, and improve operating efficiency. Equipped with a reducer that meets production needs.

6. Rugged construction: Made of high-quality stainless steel, the design is sturdy and durable, the anti-corrosion material ensures long-term use, and the simplified design is easy to clean and maintain. It has a timer-based automatic shutdown function and is provided with a one-year warranty (excluding consumables).

Plastic Granule Mixer Technical Specifications

• Material: Constructed with stainless steel, featuring 2mm thick outer panels, 6mm thick paddle bottoms, 4mm thick upper sections, and a 3mm thick inner tube.

• Dimensions: 2100mm x 3650mm

• Motor Power: 7.5KW for the main motor, 2.2KW for the feeding motor

• Blending Capacity: Capable of handling up to 3000 kg of material

• Reducer: Equipped to meet specific production needs

• Optional Heating System: Customizable based on production requirements

• Automatic Shutdown: Includes a timer-based automatic shutdown feature

• Warranty: Offers a one-year warranty under standard operating conditions (excluding consumable parts)

Applications of Plastic Granule Mixer

Plastic Processing Industry

Plastic Granule Mixer is an important equipment in the plastic processing industry, which is used to mix different types of plastic granules, such as polyethylene and polypropylene, to produce plastic granules with stable performance and reliable quality. In the field of injection molding, it can ensure the consistent performance of each part of the plastic product and avoid color difference and uneven strength. In extrusion molding, whether it is the production of plastic pipes, plates or profiles, it is necessary to evenly mix plastic raw materials with different characteristics to meet product quality and performance requirements.

plastic recycling and Reuse Industry

Plastic Granule Mixer plays a key role in the field of plastic recycling. It can mix recycled plastic flakes, fragments and powders with new plastic granules to achieve material reuse. For example, after recycling discarded plastic bottles, plastic films, etc., they are washed and crushed into granules or powders, and then mixed with new plastic granules in proportion to produce new products with performance close to that of virgin plastics, improve resource utilization and reduce production costs.

Chemical Industry

In the chemical industry, plastic granule mixers are used to mix a variety of chemical raw materials and plastic granules to prepare composite materials with special properties. For example, when producing flame-retardant plastics, flame retardants are fully mixed with plastic granules to give the product excellent flame retardant properties. In addition, when producing modified plastics, engineering plastics and other products, by adding various additives and fillers and mixing them in a mixer, the performance of plastics can be improved to meet the application requirements of different chemical products.

Construction Industry

In the construction industry, plastic granule mixers are used to produce plastic doors and windows, plastic floors and other building materials. Mixing different additives with plastic granules can improve the weather resistance, wear resistance and other properties of the product to meet the strict requirements of the construction field for product quality. At the same time, when producing plastic pipes and fittings for construction, it is also necessary to evenly mix a variety of raw materials to ensure the reliability and durability of the product during construction and use.

Plastic Granule Mixer Maintenance:

Cleaning and maintenance

After each use, the mixer needs to be thoroughly cleaned inside and outside. Wipe the surface of the machine with a soft cloth to clean the residual material; remove the stirring paddle and feeding device to clean the attached material; for the mixing chamber, open the manhole cover and use a brush and wet cloth to remove the residue. Regularly deep clean, check and replace the seals to prevent leakage. Keeping the equipment clean can improve production efficiency and extend the life of the equipment.

Lubrication and tightening

Lubrication is the key, and each component needs to be lubricated regularly. For example, the spindle bearings are lubricated monthly to reduce friction and wear; gears and chains also need to be lubricated regularly to prevent excessive wear. In terms of tightening, regularly check the connecting bolts of motors, reducers and other components to ensure tightening; pay attention to vibration and abnormal noise during production, and tighten the fasteners in time. Good lubrication and tightening can ensure the stable operation of the equipment, improve production efficiency and mixing quality.

Electrical system inspection

Regularly check the electrical system to ensure safe and stable operation of the equipment. Check whether the wires and cables are damaged and aging, and repair or replace them in time if damage is found to prevent leakage and short circuit. Check whether the electrical connection is loose, ensure that the line connection is firm, and avoid poor contact. Test the control panel buttons and indicator lights to ensure normal function. Check the insulation resistance of the motor regularly to prevent the motor from burning out. Check the overload protection and leakage protection devices to ensure accurate operation. Check the temperature sensor and control system to ensure normal monitoring and control of the heating system temperature. A good electrical system inspection can timely discover and eliminate hidden dangers, extend the life of the equipment, and ensure smooth production.

Transmission component maintenance

Regularly check the transmission components of the mixer to ensure its normal operation. Check the belt tension. It is advisable to press the deformation with your fingers for about 5 mm. Otherwise, adjust the tensioner; regularly add grease to the bearing at least once a month, and check for wear and jamming, and replace it in time. Check the tightness of the transmission chain. Slight swing is advisable. Too loose or too tight will affect the operation of the equipment. At the same time, clean the oil and impurities on the surface of the chain and apply lubricating oil. Check the gearbox oil level and oil quality regularly to ensure that the gears are well meshed, without abnormal noise and vibration, and repair and replace them in time if problems are found. Proper maintenance of transmission components can improve the operating efficiency of the equipment, extend its service life, and ensure the mixing quality.

Develop a maintenance plan

Develop a detailed regular maintenance plan based on the frequency of equipment use and working environment. For equipment that is operated daily, develop a thorough monthly, quarterly, and annual maintenance plan, including cleaning, inspection, lubrication, replacement of wearing parts, etc. Arrange professionals to carry out the maintenance plan to avoid maintenance quality being affected by personnel changes. Keep records of maintenance to facilitate tracking of equipment health. Regularly evaluate the effectiveness of the plan and make adjustments as needed to ensure that the equipment is always in optimal operating condition.

Why Choose Us?

Our Vertical Plastic Material Blender with Integrated Forced Feeder and optional heating system provides significant enhancements in processing efficiency, ensuring consistent and high-quality blending results. Engineered for durability and ease of use, this equipment is designed to meet the diverse requirements of modern industrial operations, making it a top choice for material blending and processing.

Get in touch with us today for more details or to place an order, and discover the exceptional performance and reliability of our vertical plastic blenders.
